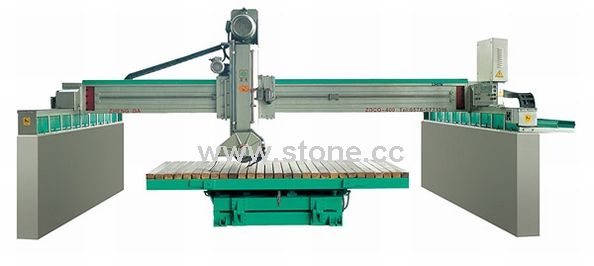

ZD-400 Infrared Fully Automatic Bridge Type Cutter (Concrete Basement)

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1274104

• Place of Origin:

  China
• INFRARED FULLY AUTOMATIC BRIDGE TYPE CUTTER(CONCRETE BASEMENT)<BR><BR>MAJOR TECHNICAL PARAMETERS: <BR>Workstation dimension: 3200× 2000mm<BR>Max. Processing dimension: 3200× 3200mm<BR>Saw blade diameter: Φ 350-400mm<BR>Mainframe engine power: 11KW<BR>Crossbeam accessorial power: 1.5KW<BR>Knife rest motion power: 1.5KW<BR>Water consumption: 2.5m&sup3; /h<BR>Total weight: 5.5T<BR>Outline dimensions: 6000× 4800× 2800mm<BR><BR>STRUCTURE AND FEATURES: <BR>The bront-back, left-right, up-down of this machine can locate and be controled by the microcomputer to work automatically. The workstation can also rotate automatically. In addition, it can turn up to an angle of 85 degree. The main electrical elements and components of the machine(such as laser reticule apparatus, magnetic rule, frequency converter ect. )are all of imported good-quality materials so that it pledegs the whole machine's precision and long life. Particularly, it is applicable to cutting the valuable and large stone board.
