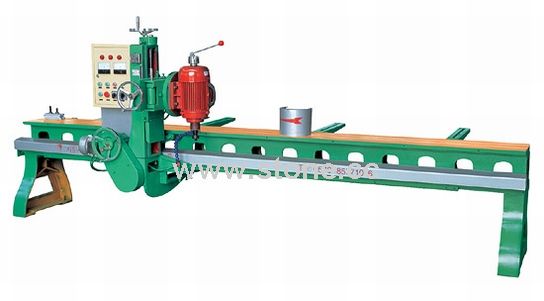

SHC99-D Straight & Curve Internally Circular for Heterogenous Type Edge Grinder(Latest Design)

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1274265

• Place of Origin:

  China
• MAJOR TECHNICAL PARAMETERS: <BR>Straight line edge grinding length: 3100(3500mm)<BR>Curve edge grinding length: 2400(2800mm)<BR>Main engine power: 4.5/5.5Kw(Double-speed)<BR>Main arbor diameter: Φ 30<BR>Outline dimension: 3800× 1600× 1500mm 4200× 1600× 1500mm<BR><BR>STURCTURE AND FEATURES: <BR>The electric machinery adopts double-speed regulation with quick molding and polishing. Its lightness is better than that of the ordinary machine. The transmission part utilizes gear connection. The metal band is stuck to the track surface and the sliding block coated with anti-wearboard. It greatly reduces the mechanical vibrating force. As a result, it prolongs two to three times longer of the overall frame service life. At present, it is the highest edge-arrissing accuracy machinery in the market.
