SHC99-A Straight And Curve Internally Circular Edge Grinder (Four-Wheel Integrated Installation)

• Place of Origin:

   China

• Type:

  Polishing and Surface Finishing Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1276399

• Place of Origin:

  China
•

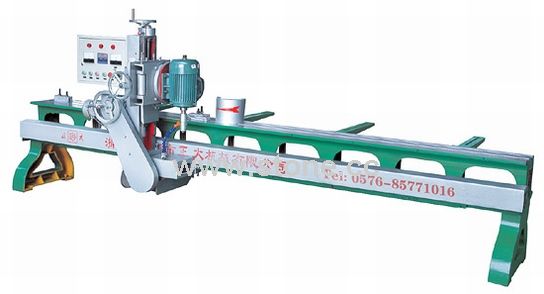

  STRAIGHT AND CURVE INTERNALLY CIRCULAR EDGE GRINDER(FOUR-WHEEL INTEGRATED INSTALLATION)

  MAJOR TECHNICAL PARAMETERS:
  Straight line edge grinding length: 3000(3400mm)
  Curve edge grinding length: 2300(2600mm)
  Main engine power: 4kw
  Main arbor diameter: Φ 30
  Outline dimension: 3600× 1600× 1500mm (4000× 1600× 1500mm)

  STRUCTURE AND FEATURES:
  The machine uses double guide-rails and twin paralleled wheels with enclosed oil immersion type and long service life. The head can be drawn out to grind curves. The board under the washbasin is internally circular with attractive and exquisite appearance. It will enhance six to eight times efficiency compared with manual grinding. Notable Features: Large feeding volume, fine stability large feed. It integrates the straight line, curve, linernal into a whole. Nowadays, it is the most advanced heterogenous type of mutifunstional edge grinder.
