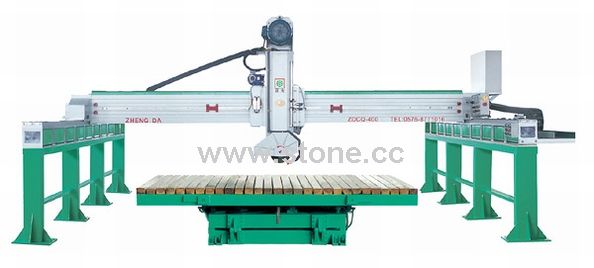

Infrared Fully Automatic Bridge Type Cutter (Integrated Basement) (ZD-400)

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1275830

• Place of Origin:

  China
•
  INFRARED FULLY AUTOMATIC BRIDGE TYPE CUTTER(INTEGRATED BASEMENT)

  MAJOR TECHNICAL PARAMETERS:
  Workstation dimension: 3200× 2000mm
  Max. Processiong dimension: 3200× 3200mm
  Saw blade diameter: Φ 350-400mm
  Main engine power: 11KW
  Crossbeam accessorial power: 1.5KW
  Knife rest motion power: 1.5KW
  Water consumption: 2.5m³ /h
  Total weight: 5T
  Outline dimensions: 6000x4800x2800mm

  STRUCTURE AND FEATURES:
  The bront-back, left-right, up-down of this machine can locate and be controled by the microcomputer to work automatically. The workstation can also rotate automatically. In addition, it can turn up to an angle of 85 degree. The main electrical elements and components of the machine(such as laser reticule apparatus, magnetic rule, frequency converter ect. )are all of imported good-quality materials so that it pledegs the whole machine's precision and long life. Particularly, it is applicable to cutting the valuable and large stone board.
